TP-Link Acces point EAP670
Non-returnable
AED568.00
Out of stock
Product Details
Specifications
EAP Product Features

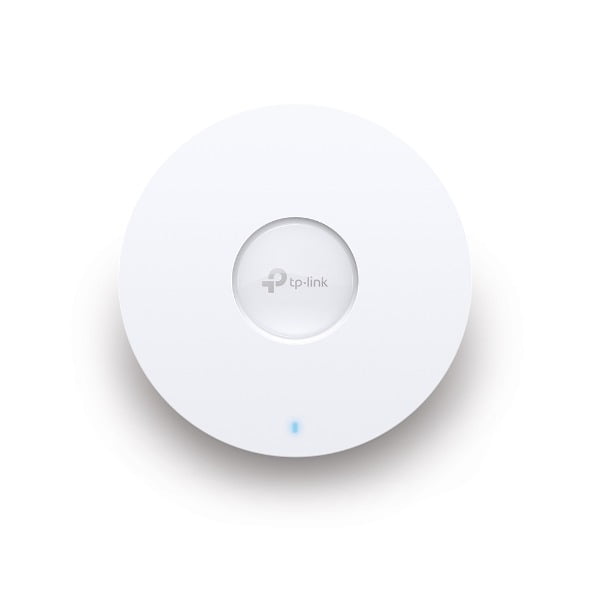

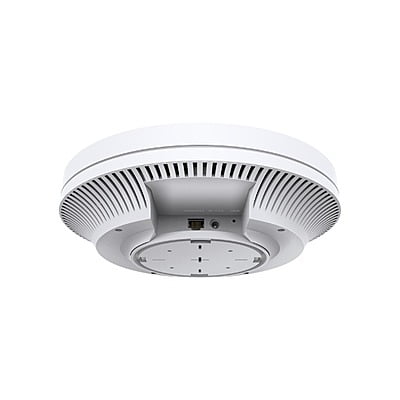

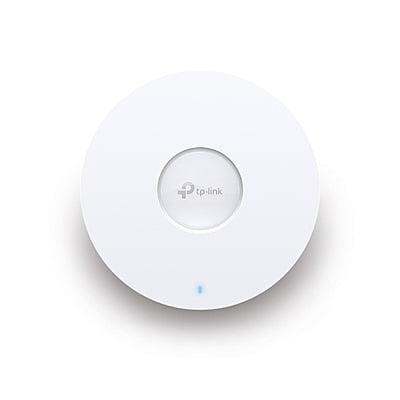

Easy-Mount Design
The Ceiling Mount EAP's elegant appearance and easy-mount design promote fast installation on any
wall or ceiling surface, and allow it to blend in seamlessly with most interior decorating styles. The slimline,
inconspicuous Wall Plate EAP can be easily installed into any standard EU/US wall junction box or 86 mm wall
junction box.
PoE Power Supply*
With IEEE 802.3af/at/bt PoE or Passive PoE, you can use Ethernet cables to transfer both electrical power and
network data, making deployment more flexible and removing the need to install additional power cabling.
Business-Class Hardware Design
Enterprise-class chipsets offer outstanding performance and support longer running time, higher client
capacity and greater range. Dedicated high-power amplifiers, specialized antennas and professionally designed
RF shields ensure excellent wireless performance.
Seamless Roaming*
802.11k and 802.11v seamless roaming provide seamless switching to the access point with optimal signal
when moving between APs.
Mesh*
Omada Mesh technology enables wireless connectivity between access points for extended range, making
wireless deployments more flexible and convenient.
Increased Efficiency with OFDMA*
The Wi-Fi 6 and above standards use OFDMA for more efficient channel use and reduced latency. Imagine
your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac Wi
Fi, each delivery truck could only deliver one parcel to one device at a time. But with OFDMA, each truck can
deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both
uploads and downloads.
Advanced RF Management
MU-MIMO, Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance
for business-level applications.
Easy Centralized Management
Configure and monitor hundreds of Omada EAPs with ease using the Omada controller.
* PoE support varies by model. For detailed information, refer to the specifications.
* Only certain devices support Seamless Roaming. For detailed information, refer to the specifications.
* Only certain devices support Mesh. For detailed information, refer to the specifications.
* Only 802.11ax and 802.11be devices support OFDMA.
EAP Product List

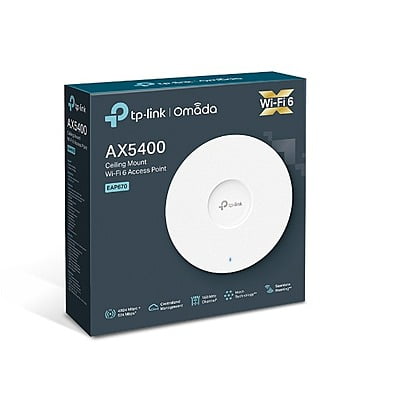

- ProductAX5400 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
- Speed2.4 GHz: 574 Mbps 5 GHz: 4804 Mbps
- Ethernet Port1x 2.5Gbps Ethernet Port
- Power Supply V1802.3at PoE or 12V/2A DC
- Power Supply V2802.3at PoE or 12V/1.5A DC
- Internal Antennas V12.4 GHz: 2x 4 dBi 5 GHz: 4x 5 dBi
Specifications
- LAN Interfaces1x 2.5Gbps Ethernet Port
- Wi-Fi StandardsIEEE 802.11 a/b/g/n/ac/ax
- Maximum Data Rate574 Mbps (2.4 GHz) +4804 Mbps (5 GHz)
- Wireless Client Capacity250+
- Antennas V12.4 GHz: 2x 4 dBi 5 GHz: 4x 5 dBi
- Maximum number of MAC Filter4000
- Wireless EncryptionWPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Multiple SSIDs16 (8 on each band)
- Transmit Power ControlAdjust transmit Power on dBm
- Rate LimitBased on SSID/Client
- MU-MIMO5G: 4x4 DL/UL MU-MIMO
- OFDMAUL/DL OFDMA
- 802.11ax8 Mbps to 4804 Mbps (MCS0-MCS11, NSS = 1 to 4 HE20/40/80/160)
- 802.11ac6.5 Mbps to 4333.3 Mbps (MCS0-MCS11, NSS = 1 to 4 VHT20/40/80/160)
- 802.11n6.5 Mbps to 600 Mbps(MSC0-MCS31, HT20/40)
- 802.11g6, 9, 12, 18, 24, 36, 48 ,54 Mbps
- 802.11b1, 2, 5.5, 11 Mbps
- 802.11a6, 9, 12, 18, 24, 36, 48 ,54 Mbps
- SNMPv1, v2c, v3
- MountingCeiling / Wall mouting (Kits included)
- CertificationsCE, FCC, RoHS, IC
