TP-Link Access point EAP653

EAP Product List

• Product
  AX3000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point
• Speed
  2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps
• Ethernet Port
  1x Gigabit Ethernet Port
• Power Supply V1
  EU: 48V Passive PoE or 802.3at PoE or 12V/1A DC , US: 48V Passive PoE or 802.3at PoE or 12V/1.5A DC
• Power Supply V2
  48V Passive PoE or 802.3at PoE or 12V/1.2A DC PoE Adapter Is Not Included
• Internal Antennas V1
  2.4 GHz: 2x 4 dBi 5 GHz: 2x 5 dBi
• Internal Antennas V2
  2.4 GHz: 2x 3 dBi 5 GHz: 3× 5 dBi (one auxiliary antenna included)

Specifications

• LAN Interfaces
  1x Gigabit Ethernet Port
• Wi-Fi Standards
  IEEE 802.11 a/b/g/n/ac/ax
• Maximum Data Rate
  574 Mbps (2.4 GHz) +2402 Mbps (5 GHz
• Wireless Client Capacity
  250+
• Antennas V1
  2.4 GHz: 2x 4 dBi 5 GHz: 2x 5 dBi
• Antennas V2
  2.4 GHz: 2x 3 dBi 5 GHz: 3× 5 dBi (one auxiliary antenna included)
• Maximum number of MAC Filter
  4000
• Wireless Encryption
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Multiple SSIDs
  16 (8 on each band)
• Transmit Power Control
  Adjust transmit Power on dBm
• Rate Limit
  Based on SSID/Client
• 802.11ax
  8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160)
• 802.11ac
  6.5 Mbps to 2166.7 Mbps (MCS0-MCS11, NSS = 1 to 2 VHT20/40/80/160)
• 802.11n
  6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
• 802.11g
  6, 9, 12, 18, 24, 36, 48 ,54 Mbps
• 802.11b
  1, 2, 5.5, 11 Mbps
• 802.11a
  6, 9, 12, 18, 24, 36, 48 ,54 Mbps
• SNMP
  v1, v2c, v3

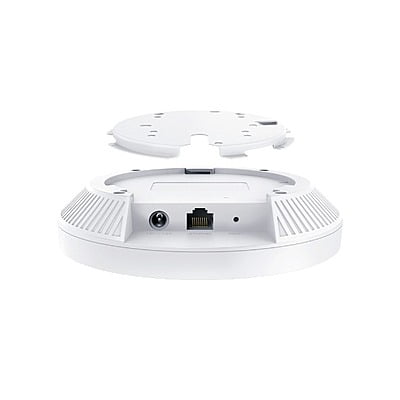

• Mounting
  Ceiling / Wall mouting (Kits included) / Junction Box mouting
• Certifications
  CE, FCC, RoHS, IC
